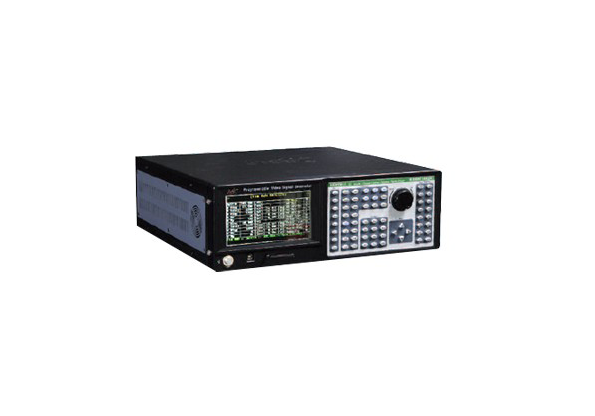

K-8880是測試 Display Device 的綜合影像信號發生器。K-8880 可以支援多種類的標準信號, 例如，LCD TV/Monitor, PDP TV, 投影儀等。它的特性是出口端由七個各別 Module組成，并獲得了國際標準HDMI, DisplayPort 的認證，提升了產品可靠性。
– Selectable Signal Module
由七個 Signal Module組成，通過各自Module來控制信號，同時測試各種 Display Device為特性
– Wideband Dot Clock & Multi Ports Output
可以支援高解像力的 Timing，并采用了Analog 330MHz / DVI Dual Link 330MHz / DisplayPort 300MHz 出口端式樣。
支持 HDMI 3ports, DisplayPort 3ports等 Multi Ports 出口端。
– 采用 HDMI V1.4 功能
采用 HDMI V1.4 功能，可以進行 3D Format / Audio Return Channel / Ethernet / CEC /
Deep Color 功能測試。
– 多種信號出口端，測試 3D 功能
HDMI V1.4 出口端外 Analog, DVI, DisplayPort, D-TV 出口端可以測試 3D
– DisplayPort V1.1a 功能
采用了DisplayPort V1.1a Standard 功能，Lane count / Pre-emphasis / Swing level /
DPCD / SSC 等，可以支援各種測試。
– TV/D-TV 標準信號出口端
TV 出口端采用了 NTSC, PAL, SECAM的 Standard specification，SMPTE 及 ITU 標準規格， 并對 Teletext, V-Chip, Closed Caption 功能
可以進行測試。
– 采用Multi Media Play 功能采用
可以實現多種解像力及 Source file 出口端，可以支持 Video format (wmv, avi, mpg, vob, mp4, asf, tp, trp),
Audio format(MP3, WMA, AAC, Ogg, PCM) 和 Image (BMP, JPG) |
 ?ANALOG VIDEO OUTPUT | | Display Size | 4096*4096 | | Pixel Rate Range | 8MHz~330MHz / Error of less than 25ppm | | Video Level | R, G, B (75 ohms) 0~1.0V programmable / 1 mV step | | Sync on Green | 0~300mV programmable | | Blank Level | 7.5 IRE / 0 IRE programmable | | Output connector | BNC, D-Sub 15-pin | | Rise / fall time | Less than 3ns (maximum) | | Protection | buffered by 75-ohm isolation | | ?HORIZONTAL TIMING | | Total Pixels | 100~8192 pixels resolution / 1 Pixel resolution | | ?VERTICAL TIMING | | Total Lines | 100~8192 lines (non-interlace) | | 100~4096 lines (interlace) / 1 line resolution | | ?SEPARATE SYNC | | HS, VS, TTL Level (4.5V) | | ?ANALOG AUDIO OUTPUT | | Frequency Range | 20Hz to 20KHz / 1Hz step | | Waveform | Sine wave | | Number of Channel | 2 Channel (R/L) | | SPECIAL CONTROL MODE | Fix / Sweep / Mute / Swap | | Connector | RCA | | ?DVI(TMDS) Output | | Pixel Rate Range | Single link : 25MHz~165MHz, Dual link : 25MHz~330MHz | | EDID | Read / Compare | | HDCP | Support HDCP V1.0 | | Compliant | DVI V1.0 | | Video Signal Type | RGB | | Sampling Mode | 4:4:4 | | Output Connector | DVI-I | | DISPLAYPORT VIDEO OUTPUT | | Pixel Rate Range | 25MHz ~ 300MHz | | Lane Count | 1/2/4 lanes | | Video Signal Type | RGB or YCbCr | | Sampling Mode | 4:4:4 / 4:2:2 | | Color Depth Trans | 6/8/10 bits per component | | Lane data rate | 2.7Gbps or 1.62Gbps per lane | | Pre-emphasis | 0dB/3.5dB/6dB/9.5dB selectable | | Swing level | 400mV/600mV/800mV/1200mV selectable | | EDID | Read/Compare | | HDCP | HDCP V1.3 | | Compliant | DisplayPort V1.1a | | ?DISPLAYPORT AUDIO OUTPUT | | Number of Channel | SPDIF 2 Channel | | Bits per Sample | Max. 24 | | Frequency | 32, 44.1, 48, 88.2, 96, 176.4, 192KHz | | TV FORMAT | | Output Mode | NTSC M, J | NTSC 443 | PAL B,D,G,H,I | SECAM | | | Subcarrier Frequency | 3.579545 | 4.433618 | 4.433618 | For=4.40625 | MHz | | Fob=4.25 | | Subcarrier Stability | ±5 | Hz | | Video Output | Composite (BNC), S-Video | | Single : CVBS | Connector | BNC | | Single : Y/C | Connector | 4-pin mini DIN | | Burst On/Off (NTSC, PAL) | | Closed Caption (NTSC) | C1, C2, C3, C4 / T1, T2, T3, T4 | | V-Chip | MPAA Rating : G, PG, PG-13, R, NC-17, X | | FCC Rating : TV-Y, TV-Y7, TV-G, TV-PG, TV-14, TV-MA | | Teletext support (PAL) | Teletext System B Level 1, 1.5 | | ?D-TV FORMAT | | Single | Y, Pb, Pr | Connector | BNC | | Format | 480P, 720P, 1080i, 1080P | | Timing | Progressive Mode Frame Rate (Hz) | Interlace Mode Frame Rate (Hz) | Standard | | 1920X1080 | 60P | 60 | 60i | 30 | SMPTE 274M | | 59.94P | 60 | 59.94i | 30 | SMPTE 274M | | 50P | 50 | 50i | 25 | SMPTE 274M | | 30P | 30 | | | SMPTE 274M | | 29.97P | 30 | | | SMPTE 274M | | 25P | 25 | | | SMPTE 274M | | 24P | 24 | | | SMPTE 274M | | 23.98P | 24 | | | SMPTE 274M | | 1280X720 | 60P | 60 | | | SMPTE 296M | | 59.94P | 60 | | | SMPTE 296M | | 50P | 50 | | | SMPTE 296M | | ?HDMI VIDEO OUTPUT | | Compliant | HDMI V1.4a | | Pixel Rate Range | 25MHz~165MHz (TMDS rate 225MHz) | | Support HDMI Timing | 85 Timing (CEA-861E) | | Video Signal Type | RGB or YCbCr | | Sampling Mode | RGB 4:4:4 / YCbCr 4:4:4 or 4:2:2 | | Bits per Component | Deep Color 8 / 10 / 12 | | Color Space | RGB / ITU-R BT. 601 / ITU-R BT.709 / xvYCC | | HDCP | HDCP V1.2 | | EDID | Read/Compare | | 3D VIDEO FORMAT OUTPUT | | | 3D Scanning Mode | Frame Packing | Field alternative | | Side-by-Side(Half) | Side-by-Side(Full) | | Line alternative | Top & Bottom | | L+depth | L+depth+graphics+graphics-depth | | ?HDMI AUDIO OUTPUT | | Sample Rate | 32.0, 44.1, 48, 88.2, 96, 176.4, 192 KHz | | Number of Channel | 7.1 Channel | | Bits per Sample | 24 | | Waveform | Sine wave | | Frequency Range | 20Hz to 20KHz | | Frequency Resolution | 1Hz / Step | | Level Range | -46dBFs ~ 0.0dBFs | | Extermal Audio Input | Optical | | Special Control Mode | Fix / Sweep / Mute / Swap/ Optical / Speaker Allocation | | ?MEDIA PLAY | | Output Port | Analog, TV, D-TV(YPbPr), HDMI | | Storage method | 3.5” HDD, USB 2.0(over than WinXP) | | Storage capacity | 250GB | | Regeneration Codec | Divx, Mpeg1/2/4, wmv9 | | Video Format | wmv, avi, mpg, vob, mp4, asf, tp, trp | | Audio | MP3, WMA, AAC, Ogg, PCM | | Image | BMP, JPG | | SCAN Group | | Storge | 100 group (1 group : 40 step) | Edit : Front panel, PC | | ?Function Group | | Storge | 100 group (1 group : 40 step) | Edit : Front panel, PC | | ?DATA STORAGE DEVICE | | Timing | 500 Timings ; Storage : 300 | Edit : Front panel, PC | | Pattern | 400 Patterns ; Storage : 200 | Edit : Front panel, PC | | Compact Memory Card | Unlimited data storage(1GB) | Read / Write | | ?OTHERS | | AC Input | 90 ~ 260 V auto range / 50 ~ 60 Hz auto range | | Operation/Storage Temp. | +5 ~ +40 deg.C / -20 ~ +60 deg.C | | ?DIMENSION / WEIGHT | | H X W X D / Weight | 140 X 420 X 414.5mm / 10Kgs | All specifications are subject to change without any notice. |
?
?采用 HDMI V1.4 Spec
